Home Security LED Display Combustible Gas Leak Detector Alarm With Backup Battery

Detailed description

  • Name :Home Security LED Display Combustible Gas Leak Detector Alarm With Backup Battery
  • Brand :saful
  • Model No. :TS-G703
  • Discription:Home Security LED Display Combustible Gas Leak Detector Alarm With Backup Battery
  • Gross Weight :0.3kg
  • Packing Size :(L)11cm*(W)7.6cm*(H)3.5cm
  • Discription:Home Security LED Display Combustible Gas Leak Detector Alarm With Backup Battery
  • Packing Size :(L)11cm*(W)7.6cm*(H)3.5cm

Voice broadcast combustible gas detector alarm



Product Description



This product is a high stability combustible gas detector (the following is called for short detectors),
for detecting a combustible gas leaks, prevention of harm caused by a gas leak, detectors use high stability catalytic combustion sensor, high stability, sensitivity drift small and so on features. This product uses digital display alarm concentration, the detector can be operated in the voltage range between AC100V-AC240V, and have installed battery backup function,you can use 9V NiMH rechargeable batteries. This product is used in the place it is possible to produce combustible gas leak
Features
1.High reliability catalytic combustion sensor
2.Digital tube display alarm level
3.Use Microprocessor control
4.Automatic fault detection indication
5.With backup battery function
6.Backup Battery Low Voltage Tips
7.AC100V- AC240V Wide range of operating voltage
8.Using SMT process, strong stability L1484

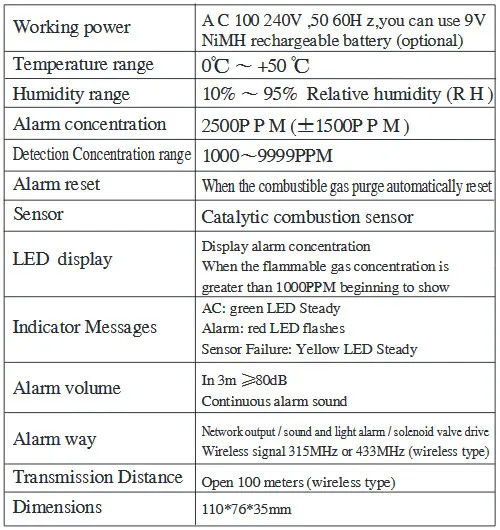

Specifications

Schematic View





Packaging & Shipping

1 * gas alarm

1 * package of screw and stopper

1 * manual



Method to use
1. First, determine the desired test gas is heavier than air, or lighter than air Heavier than air gas: liquefied petroleum gas;
lighter than air gas: Natural gas, artificial gas, methane.
2. Install the detector in a suitable place according to the severity of the gas When detecting heavier than air gas:install in the 0.3 to 1.0 meters above the ground ,From the gas source within a radius of 1.5 m; when detecting lighter than air gas Mounted on the ceiling below the 0.3 to 1.0 meters away from the gas source within a radius of 1.5 m

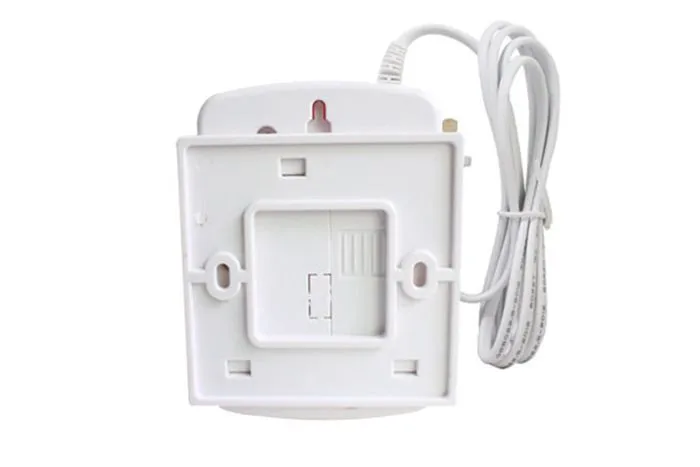

3. mount the detector bracket on the wall with screw, then hang detector.
4. Note also that the family, the installation location can not be away from gas stoves too near avoid stove flame detector by baking; it can not be installed in oil great place to smoke in order to avoid false alarms or lead to the air intake detector Poor intake air, thus affecting the detector sensor sensitivity; nor safe Exhaust fan installed in the doors and windows at the side and a large bathroom moisture.
5. Figure correct wiring, all wiring installations must comply with valid national and local regulations, and standards. Improper
connection will result in a gas leak, the alarm does not work.
